CSM 963

Chain saws machines

Description

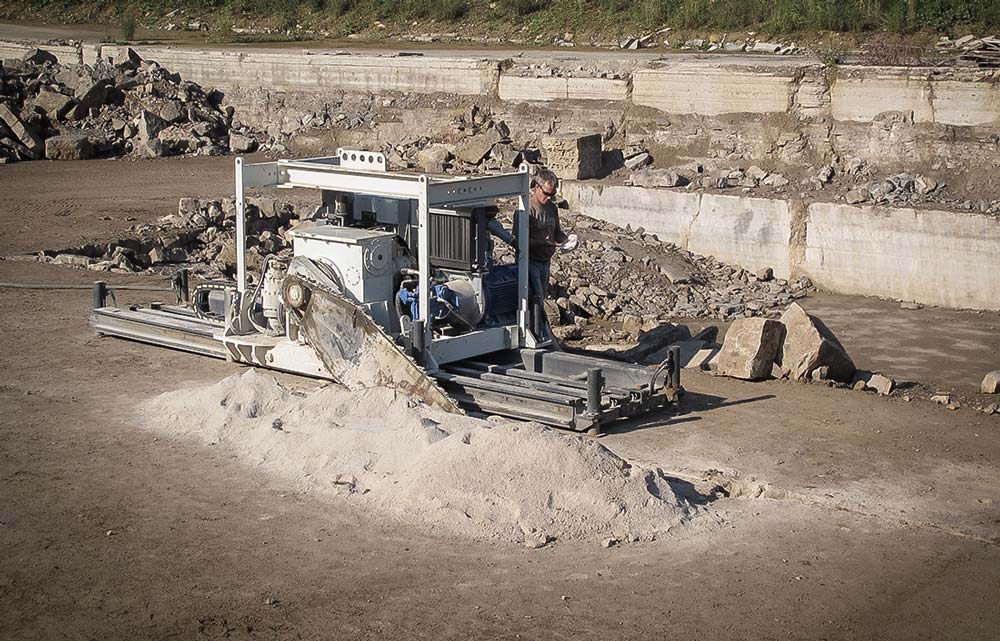

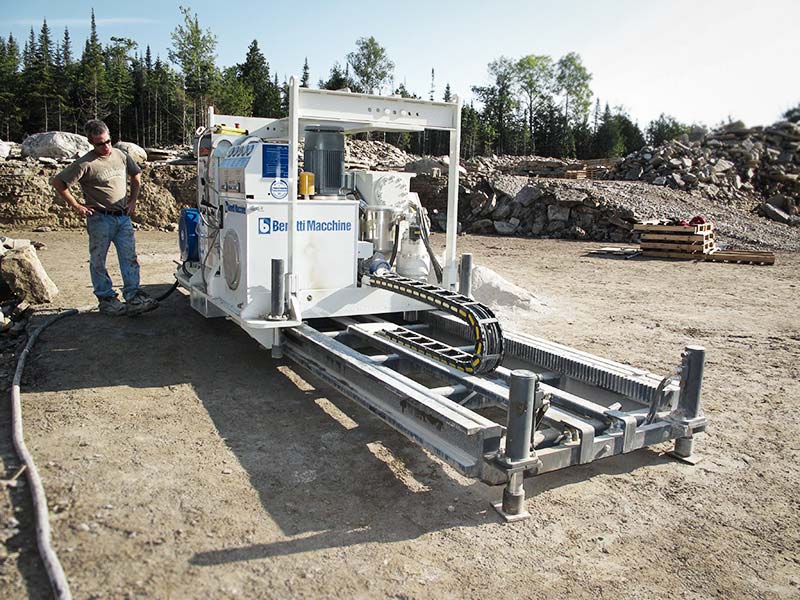

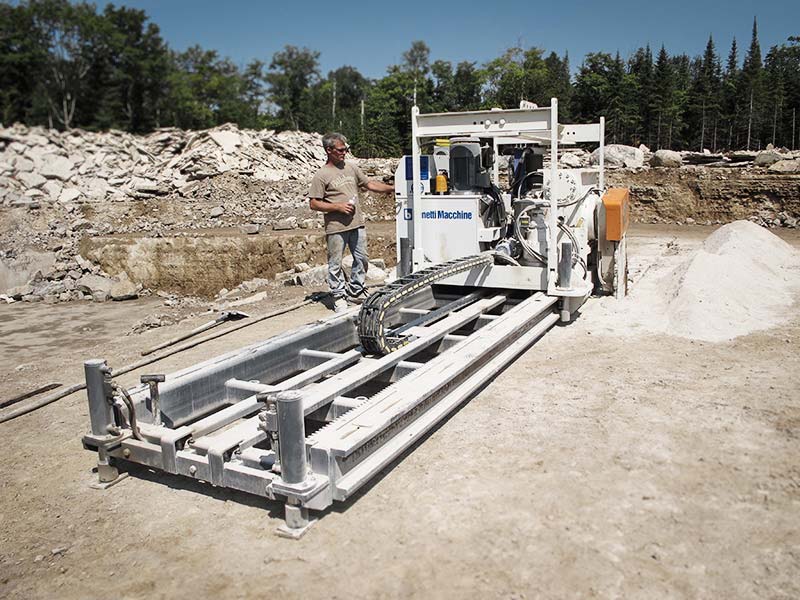

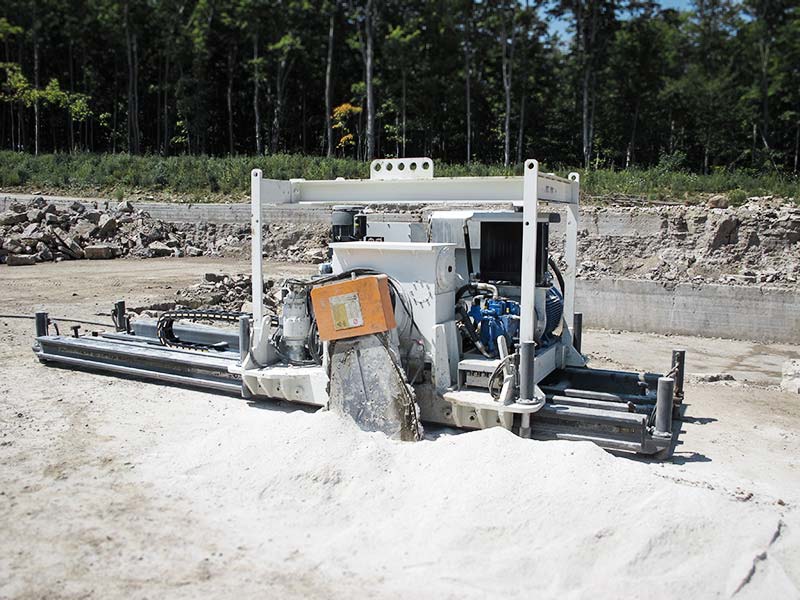

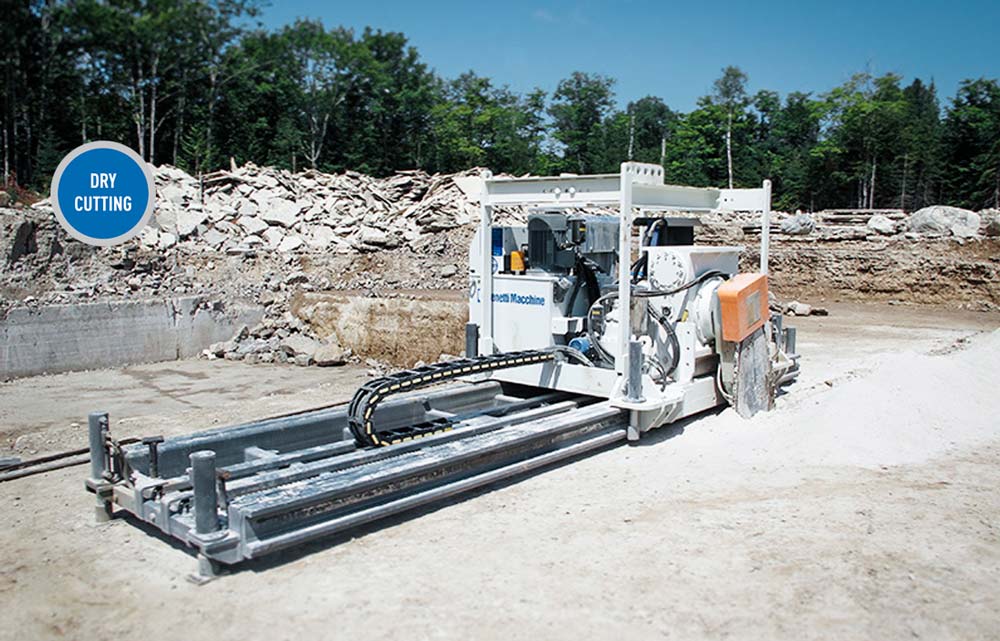

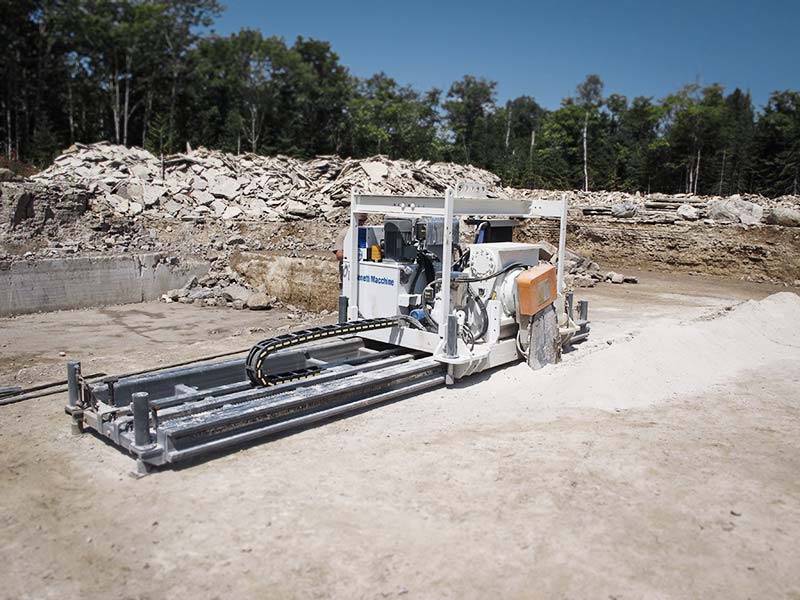

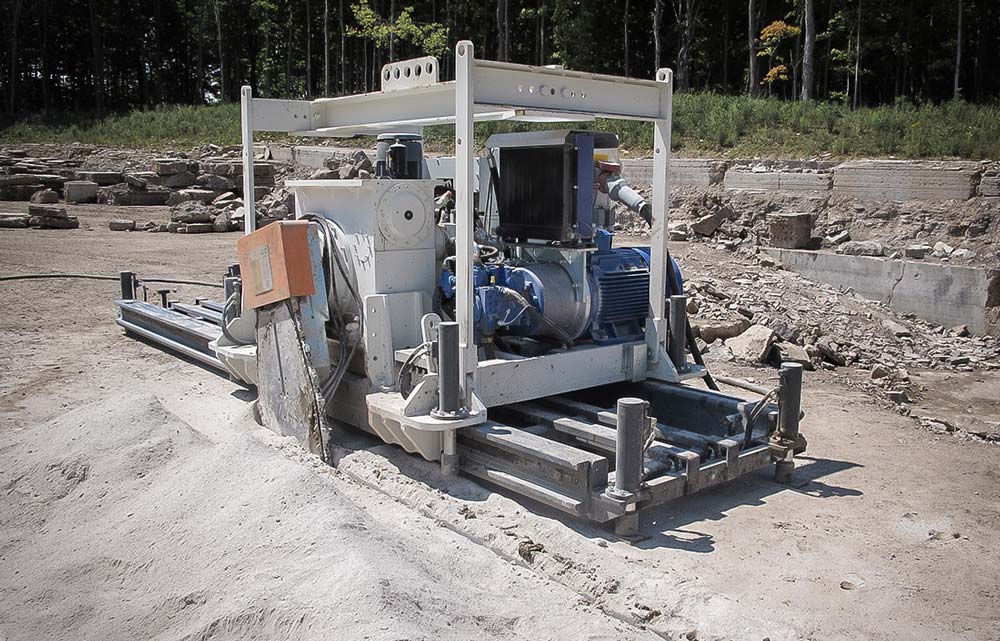

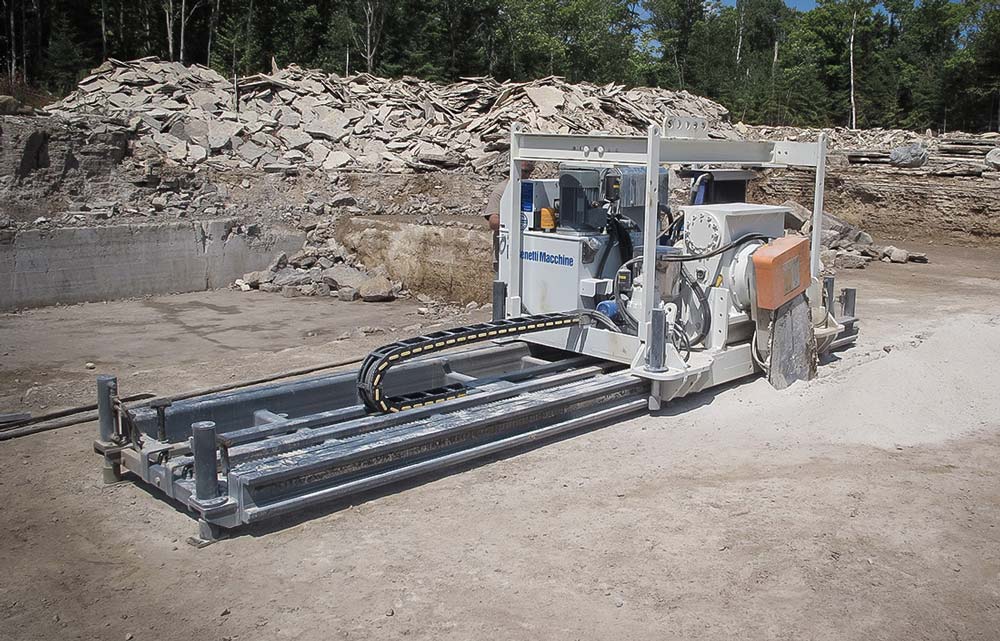

The chain saw machine model CSM 962 can make vertical cuts up to a maximum depth of 5 meters and horizontal cuts up to a maximum depth of 4,5 meters in marble, limestone and similar stones.

Arms and chains are available of useful cut from 2 up to 5 metres.
Benetti Macchine gives the customer the possibility to fit the following chains on the machine in order to optimise the cutting performance in conformity with the material to be cut:
chain with 8 cutting edges widia tungsten carbide tools;
chain with 4 cutting edges widia tungsten carbide tools;
chain with polycrystalline diamond tools for hard stone cutting.
The movement of the arm, the chain and the trolley is controlled by means of reversible hydraulic transmission systems, with variable capacity pump, which allow continuous speed adjustment.
The controls of the machine relevant to the positioning and work are via an electric control board with buttons and electro valves on the hydraulic unit.

Technical features

Total installed electric power 53 KW
Weight of the machine with 1 rail 8.000 Kg
Chain rotation speed 0 – 1,2 m/sec.
Weight of the machine with 1 rail of 3 metres lenght 950 Kg
Travel speed 0 – 13 cm/min.
Maximum useful cut depth 5 m
Available lenghts of arm (Useful cut) from 2 to 5 m
Cut width 38-40-42 mm
Arm rotation 360°
Hydraulic oil tank capacity 300 L
Grease tank capacity 25 kg
Grease capacity with 7/9 plungers up to 1,5 Kg/h
