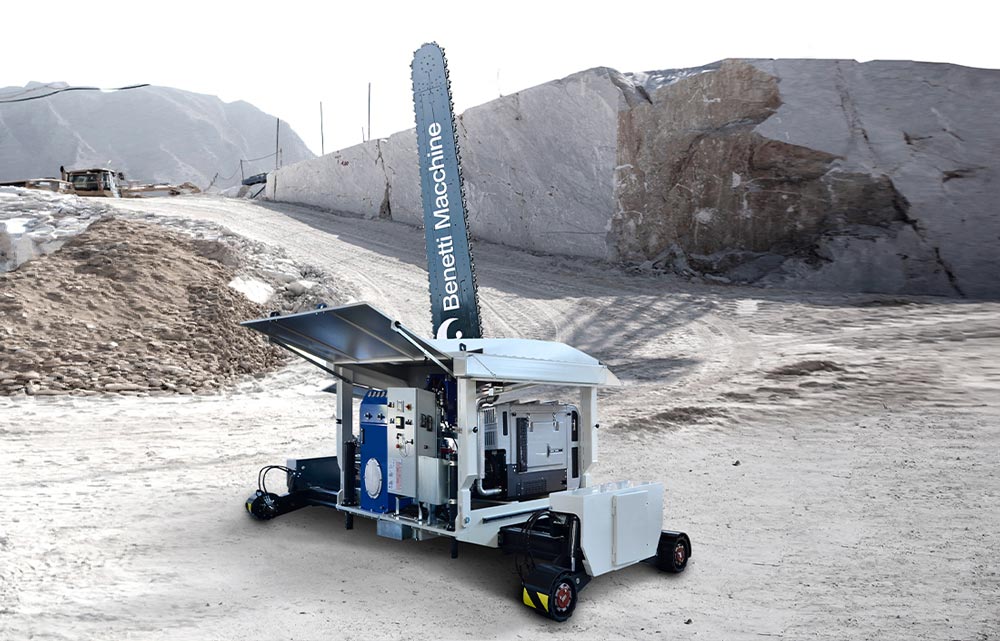

CSM 963 D

Chain saws machines

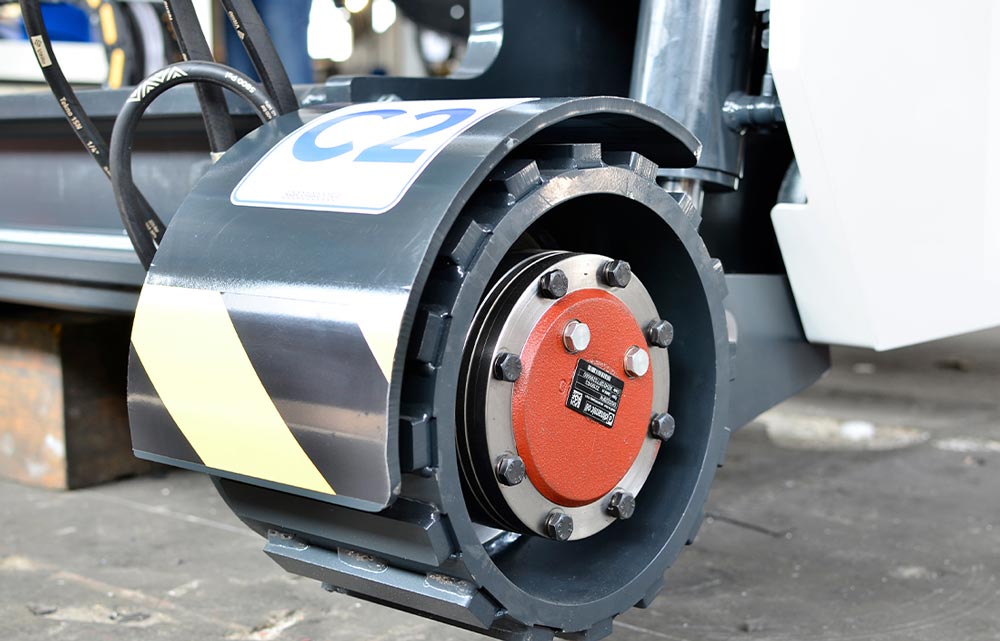

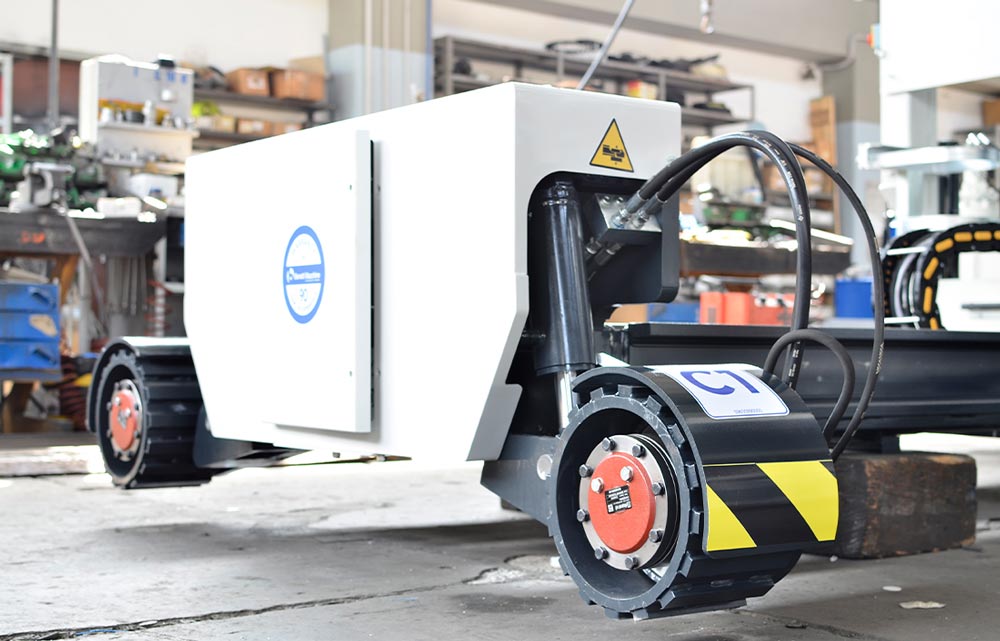

Single rail equipped with leveling cylinders and tilting wheels.

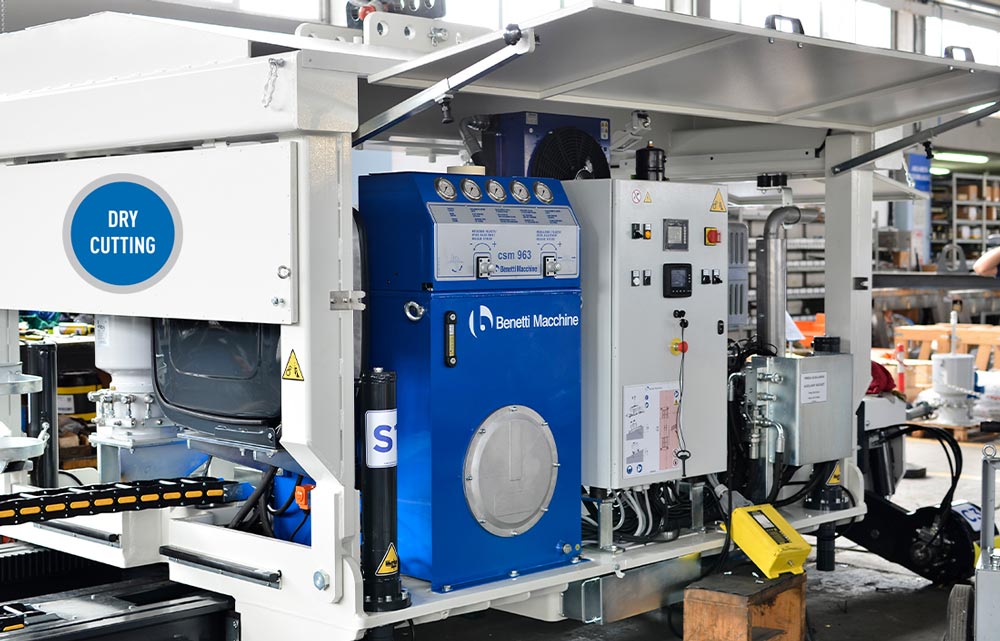

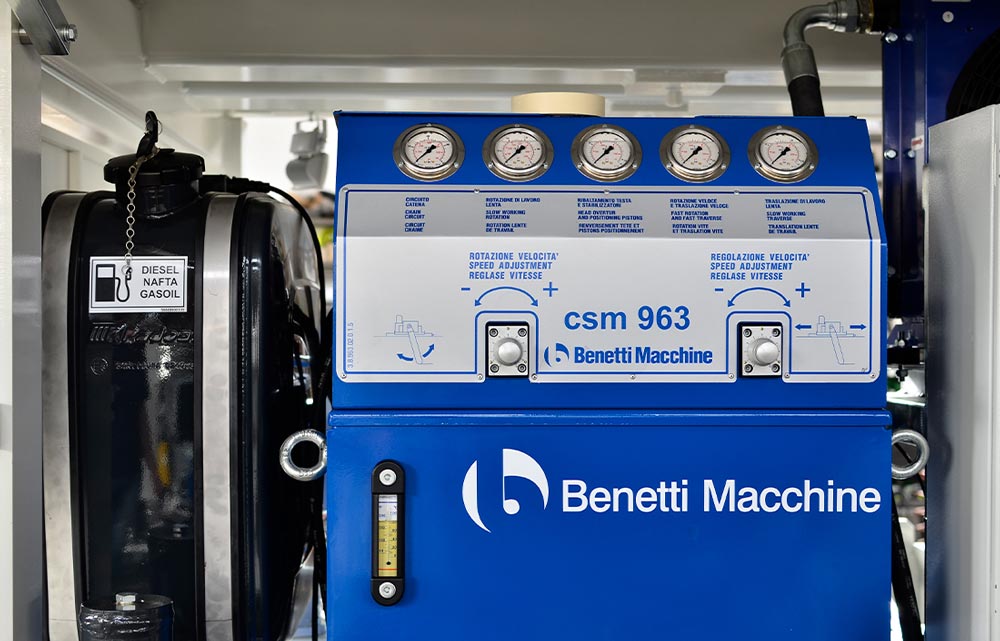

Self-contained with diesel power pack.

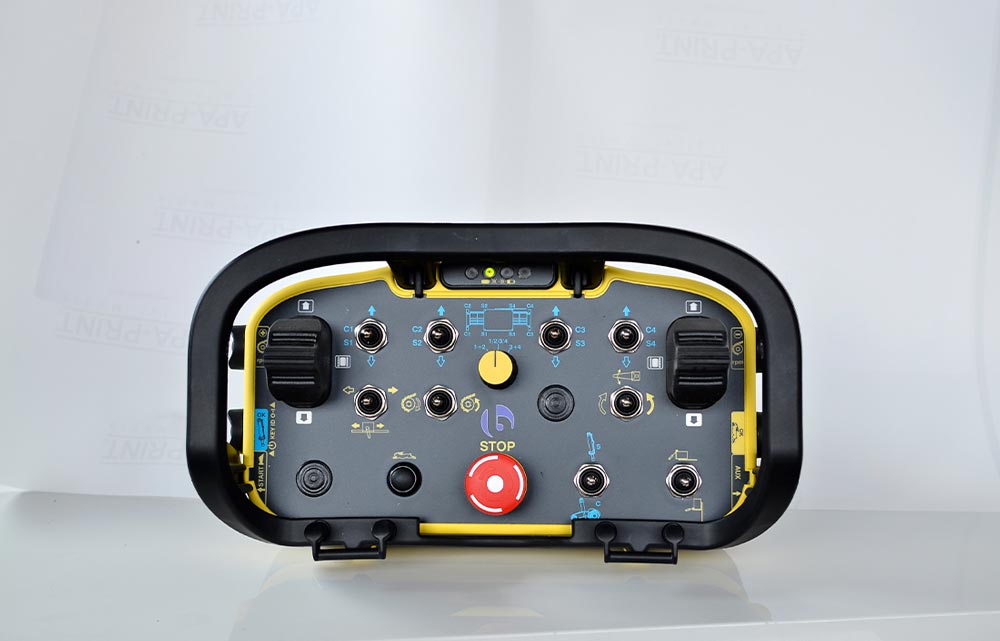

Portable wireless panel for the control of all movements.

Technical features

Total installed electric power 75 KW
Weight of the machine with 1 rail 11.500 Kg
Chain rotation speed 0 – 1,2 m/sec.
Travel speed 0 – 13 cm/min.
Maximum useful cut depth 5 m
Available lenghts of arm (Useful cut) from 2 to 5 m
Cut width 38-40-42 mm
Arm rotation 360°
Hydraulic oil tank capacity 300 L
Grease tank capacity 25 kg
Grease capacity with 7/9 plungers up to 1,5 Kg/h
Machine dimensions L:6.6m – H:2.3m – D:2.3m
Positioning speed on wheels Max 1,3 m/min
